Opening the trunk lid

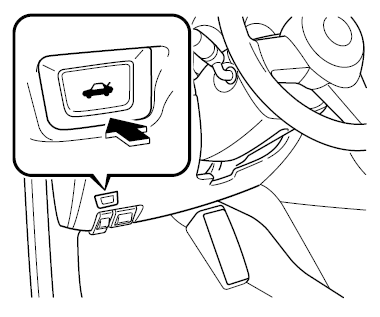

Using the remote release button
Push the remote release button.
Using the electric trunk lid opener
(With the advanced keyless function)
A locked trunk lid can also be opened while the key is being carried.
Press the electric trunk lid opener on the trunk lid, then raise the trunk lid when the latch releases.
NOTE

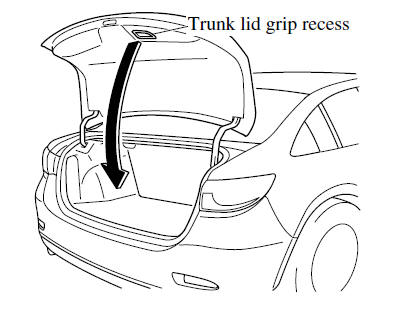

Closing the trunk lid
To close, lower the trunk lid slowly using the trunk lid grip recess, and then push the trunk lid closed using both hands. Do not slam it. Pull up on the trunk lid to make sure it is secure.
Mazda 6 Owners Manual: Flasher unit inspection
1. Connect the connector to the flasher unit.
2. Connect the negative battery cable.
3. Measure the voltage at the flasher unit using voltmeter.
When inspecting terminal F for continuity, disconnect the flasher unit connector.
4. If the value are not as specified in the Terminal Voltag ...
Mazda 6 Owners Manual: Clock spring inspection
1. Remove the clock spring.
2. Inspect for continuity between the clock spring terminals using an
ohmmeter.
If not as specified, replace the clock spring.
Note
When the vehicle-side connector of clock spring is disconnected,
the terminals 1A,1B, 1C and 1D are shorted to prevent ...
