Mazda 6 Service Manual: A-pillar trim removal

Mazda 6 Service Manual / Body / Trim / A-pillar trim removal

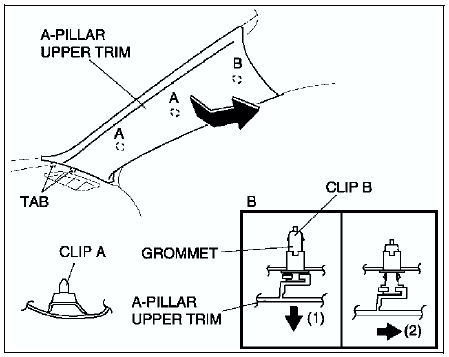

1. Turn the seaming welt over.

2. Disengage clips A using a fastener remover.


3. Pull the A-pillar trim, then disengage clip B (1).

4. Pull the A-pillar trim upward, then disengage clip B from the A-pillar trim (2).

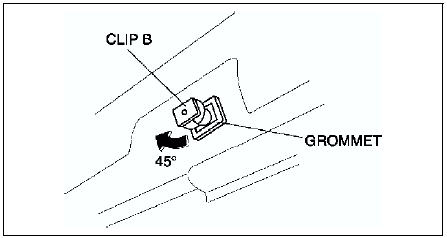

5. Pull clip B out, then rotate 45°.


6. Remove clip B from the grommet by pulling it toward you.

Trim
...

A-pillar trim installation
1. Cut A-pillar trim tab A to the same length as tab B. 2. Install clip B to the A-pillar trim. 3. Install the A-pillar trim by tapping the clip into the body. ...
