Mazda 6 Service Manual: A-pillar trim installation

Mazda 6 Service Manual / Body / Trim / A-pillar trim installation

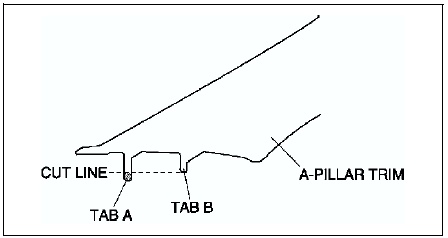

1. Cut A-pillar trim tab A to the same length as tab B.


2. Install clip B to the A-pillar trim.

3. Install the A-pillar trim by tapping the clip into the body.
