Mazda 6 Service Manual: Dtc c1186, c1266

Mazda 6 Service Manual / Braking system / On-board diagnostic (abs/tcs) / Dtc c1186, c1266

Caution

When attaching the tester lead to the ABS (ABS/TCS) HU/CM harnesses connector the SST (49 G066 001) must be used. (See ABS (ABS/TCS) HU/CM INSPECTION.)

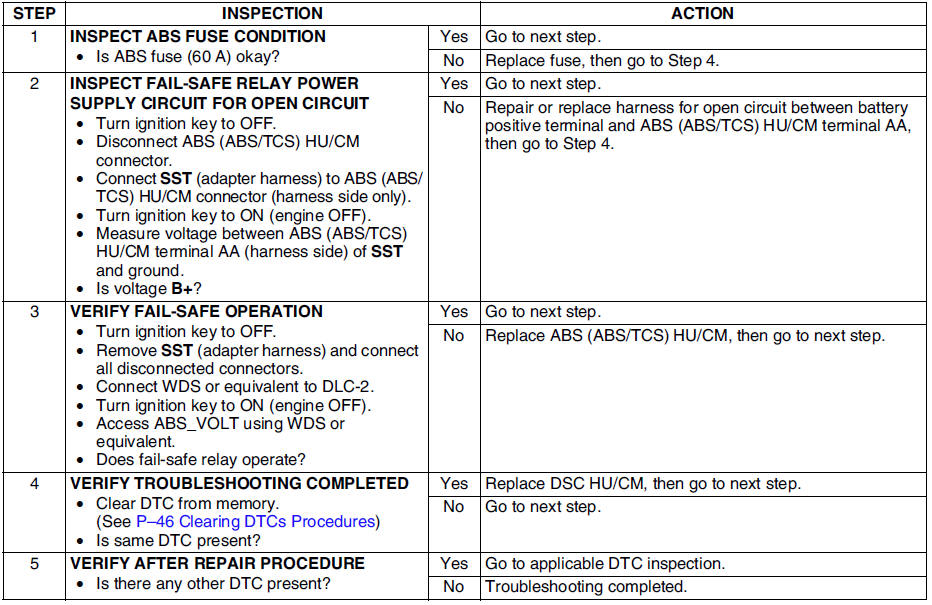

Diagnostic procedure
