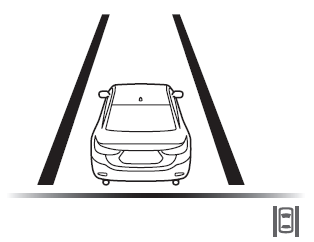

Mazda 6 Owners Manual: Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS) Display (Some models)
Displays the system status.
Refer to Lane-keep Assist System (LAS) & Lane Departure Warning System (LDWS).
Mazda Radar Cruise Control (MRCC) Display (Some models)
Displays the currently set system status.
Refer to Mazda Radar Cruise Control (MRCC). ...
Cruise Control Set Vehicle Speed Display (Some models)
The vehicle speed preset using the cruise control is displayed.
...
