Mazda 6 Service Manual: No.5 tcs off light does not illuminate with ignition switch on

Mazda 6 Service Manual / Braking system / Troubleshooting (abs/tcs/dynamic stability control) / No.5 tcs off light does not illuminate with ignition switch on

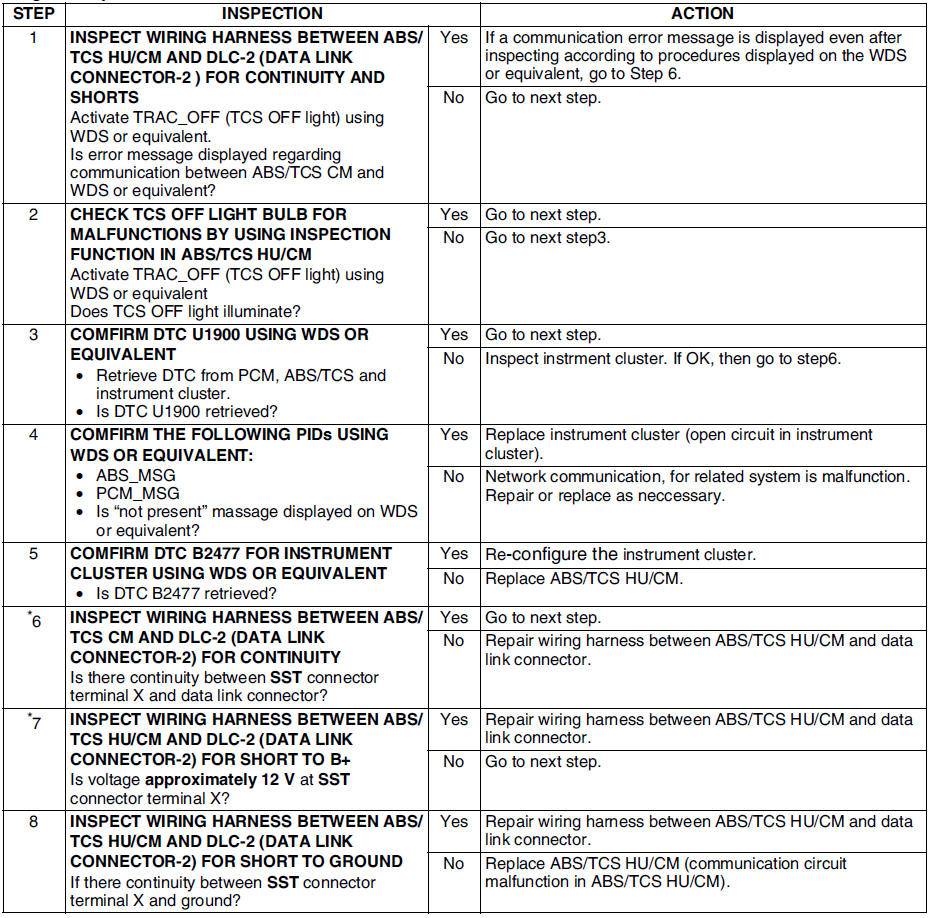

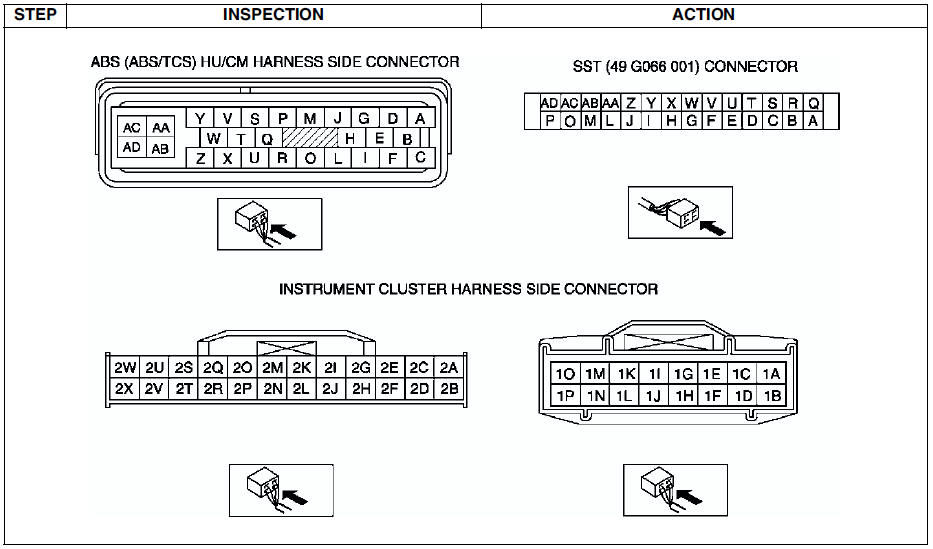

Diagnostic procedure

When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while doing the inspection to discover whether poor contact points are the cause of any intermittent malfunction. If there is a problem, check to make sure connectors, terminals and wiring harnesses are connected correctly and undamaged.

No.4 brake system warning light does not illuminate with ignition switch on

...

No.6 both abs warning light and brake system warning light stay on more than 4 seconds with ignition switch on

Diagnostic procedure ...
