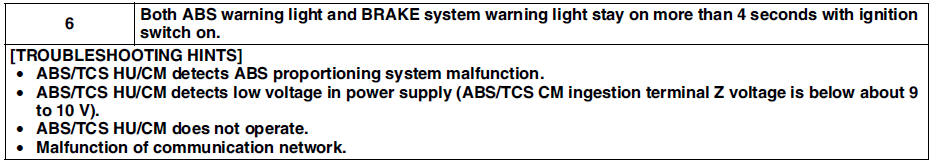

Mazda 6 Service Manual: No.6 both abs warning light and brake system warning light stay on more than 4 seconds with ignition switch on

Mazda 6 Service Manual / Braking system / Troubleshooting (abs/tcs/dynamic stability control) / No.6 both abs warning light and brake system warning light stay on more than 4 seconds with ignition switch on

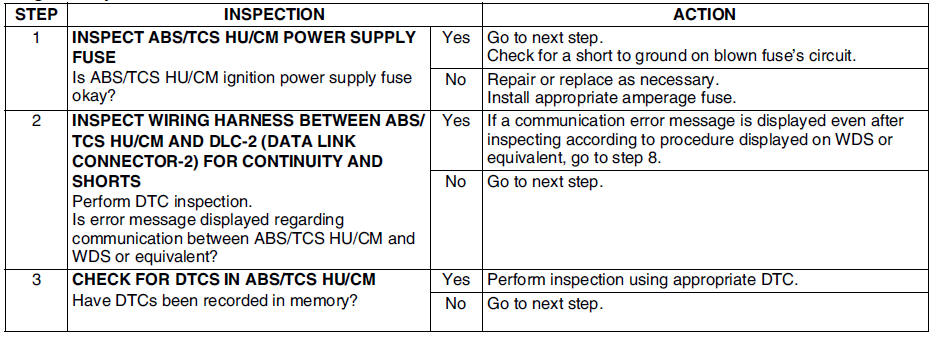

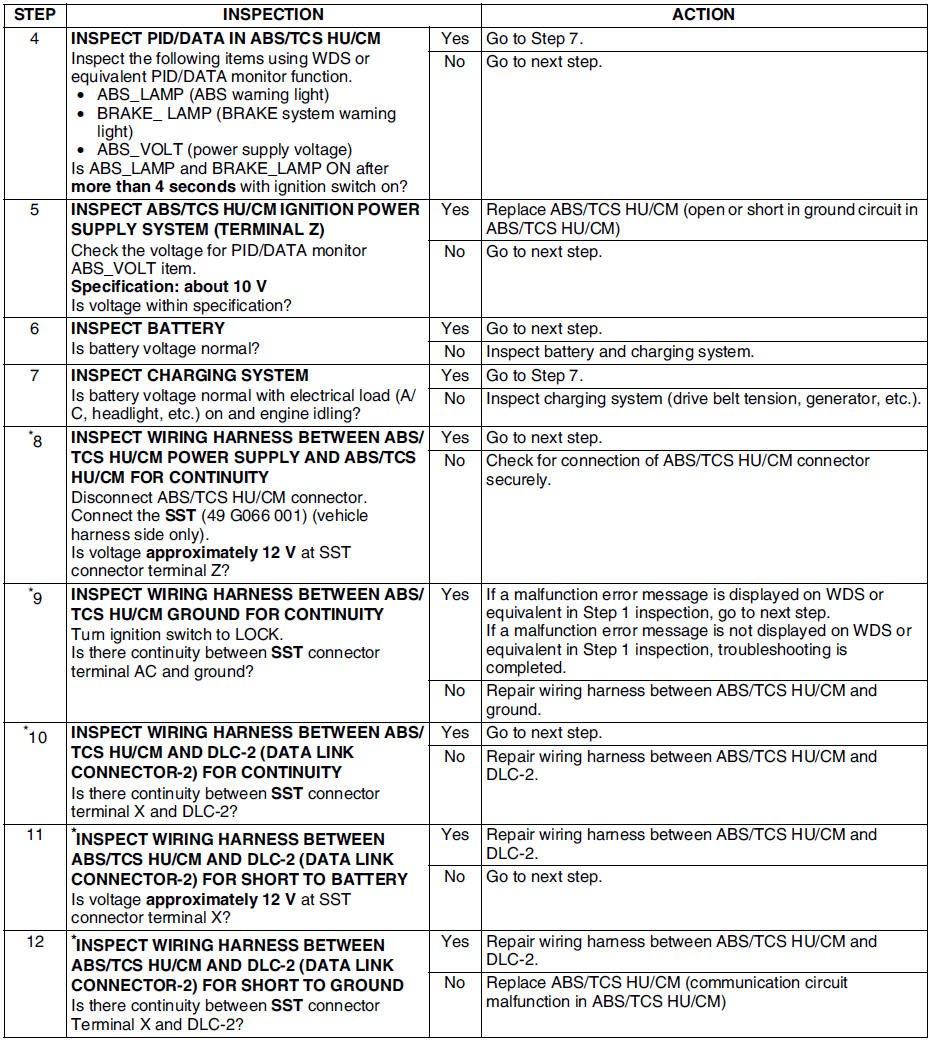

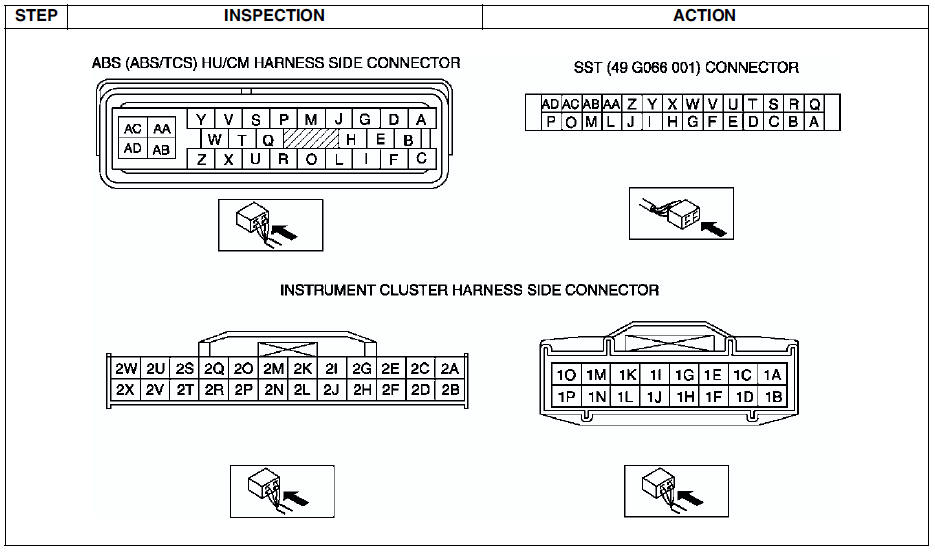

Diagnostic procedure




No.5 tcs off light does not illuminate with ignition switch on
Diagnostic procedure When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while doing the inspection to discover whether poor contact p ...

No.7 abs warning light stays on more than 4 seconds with ignition switch on
Diagnostic procedure When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while doing the inspection to discover whether poor contact poi ...
