Mazda 6 Service Manual: No.7 abs warning light stays on more than 4 seconds with ignition switch on

Mazda 6 Service Manual / Braking system / Troubleshooting (abs/tcs/dynamic stability control) / No.7 abs warning light stays on more than 4 seconds with ignition switch on

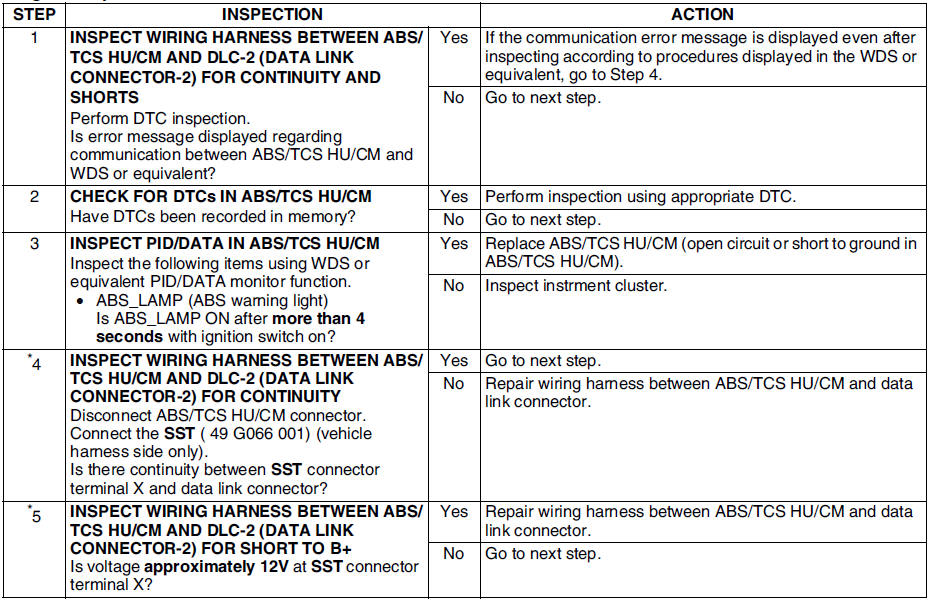

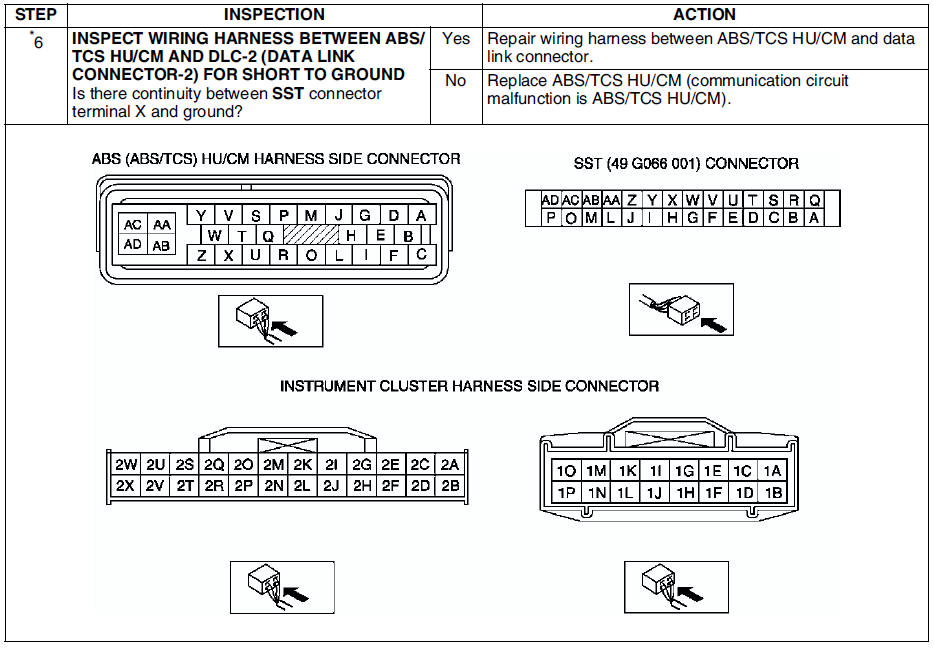

Diagnostic procedure

When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while doing the inspection to discover whether poor contact points are the cause of any intermittent malfunction. If there is a problem, check to make sure connectors, terminals and wiring harnesses are connected correctly and undamaged.

No.6 both abs warning light and brake system warning light stay on more than 4 seconds with ignition switch on

Diagnostic procedure ...

No.8 brake system warning light stays on more than 4 seconds with ignition switch on

Diagnostic procedure When performing an asterisked (*) troubleshooting inspection, shake the wiring harness and connectors while doing the inspection to discover whether poor contact p ...
