Mazda 6 Service Manual: Noise filter inspection

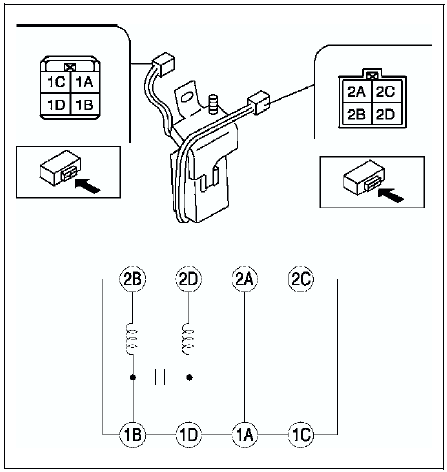

Brake Light Noise Filter
1. Inspect for resistance and continuity between the noise filter terminals using an ohmmeter.
- If not as specified, replace the noise filter.
Rear Window Defroster Noise Filter
Inspect for resistance and continuity between the noise filter terminals using an ohmmeter.
- If not as specified, replace the noise filter.
Noise filter removal/installation
Brake Light Noise Filter
1. Disconnect the negative battery cable.
2. Remove in the order indicated in the table.
3. Install in the reverse order of removal.
Rear Window Defroster Noise Filter ...
Condenser removal/installation
4SD
1. Disconnect the negative battery cable.
2. Remove the rear package trim.
3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5HB
1. Disconnect th ...
