Mazda 6 Service Manual: Sunvisor removal/installation

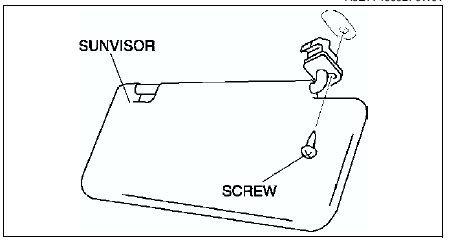

1. Remove the screws, then the sunvisor.

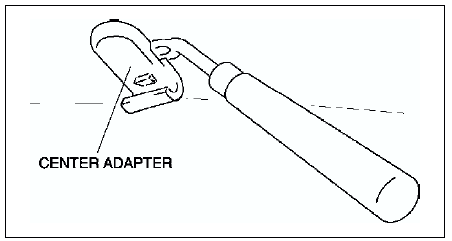

2. Disengage the center adapter (sunvisor stopper) from the body using a fastener remover.
3. Install in the reverse order of removal.
