Mazda 6 Service Manual: Front seat belt removal/installation

Mazda 6 Service Manual / Body / Seat belt / Front seat belt removal/installation

Warning

Warning

Caution

1. Turn the ignition switch to LOCK position.

2. Disconnect the negative battery cable and wait for more than 1 minute.

3. Remove the B-pillar lower trim.

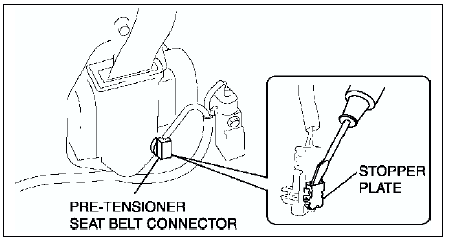

4. Using a screwdriver, pry out the pre-tensioner seat belt connector's stopper plate.


5. Disconnect the pre-tensioner seat belt connector.

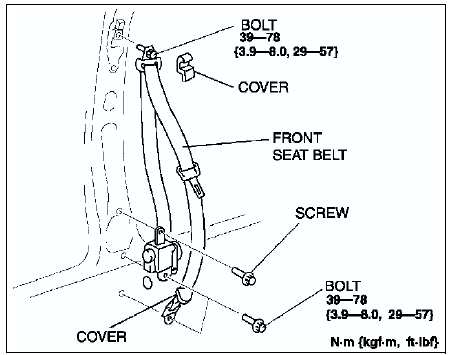

6. Remove the covers.


7. Remove the bolts and screw, then remove the front seat belt.

8. Install in the reverse order of removal.

9. Verify that the air bag system warning light illuminates for approximately 6 seconds

and then goes off.
