Mazda 6 Service Manual: Front tilt motor inspection

Mazda 6 Service Manual / Body / Seat / Front tilt motor inspection

1. Disconnect the front tilt motor connector.

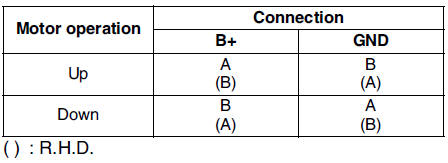

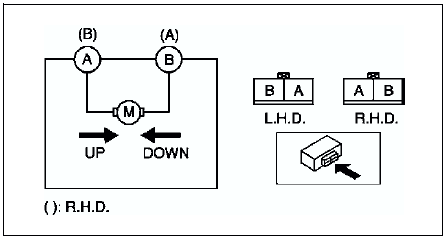

2. Inspect the front tilt motor operation when B+ is applied to the terminals as shown.

If not as specified, replace the seat cushion frame.
