Mazda 6 Service Manual: Ignition switch inspection
1. Disconnect the negative battery cable.
2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION)

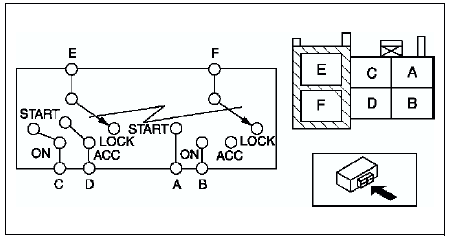

3. Disconnect the ignition switch connectors.

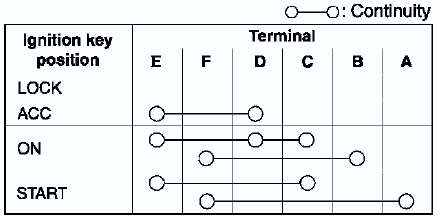

4. Inspect for continuity between the ignition switch terminals using an ohmmeter.
- If not as specified, replace the ignition switch.
Ignition switch removal/installation
1. Disconnect the negative battery cable.
2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION)
3. Remove in the order indicated in the table.
4. Install in the reverse order of r ...
Key reminder switch removal/installation
1. Disconnect the negative battery cable.
2. Remove the column cover.
3. Disconnect the key reminder switch connector.
4. Remove the key reminder switch.
5. Install in the reverse order of remov ...
