Mazda 6 Service Manual: Side air bag module removal/installation

Mazda 6 Service Manual / Body electrical system / Air bag system / Side air bag module removal/installation

Warning

Warning

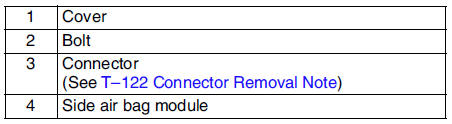

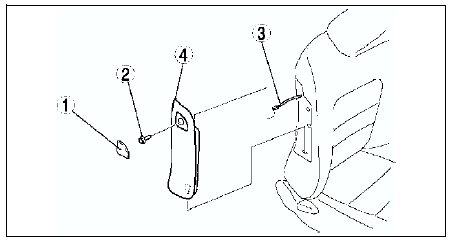

1. Remove in the order indicated in the table.



2. Install in the reverse order of removal.

3. Turn the ignition switch to ON position.

4. Verify that the air bag system warning light illuminates for approximately 6 seconds

and then goes off.

Connector Removal Note

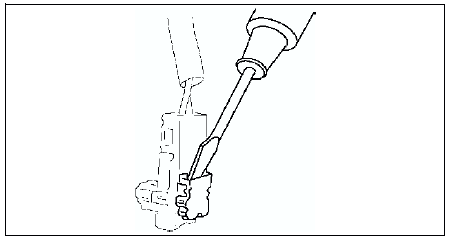

1. Using a flathead screwdriver, pry out the connector's stopper plate.


2. Disconnect the connector.
