Mazda 6 Service Manual: Vise

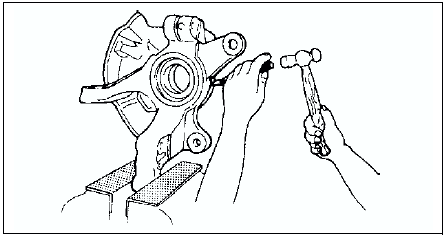

- When using a vise, put protective plates in the jaws of the vise to prevent damage to parts.
