Mazda 6 Service Manual: Clutch master cylinder removal/installation

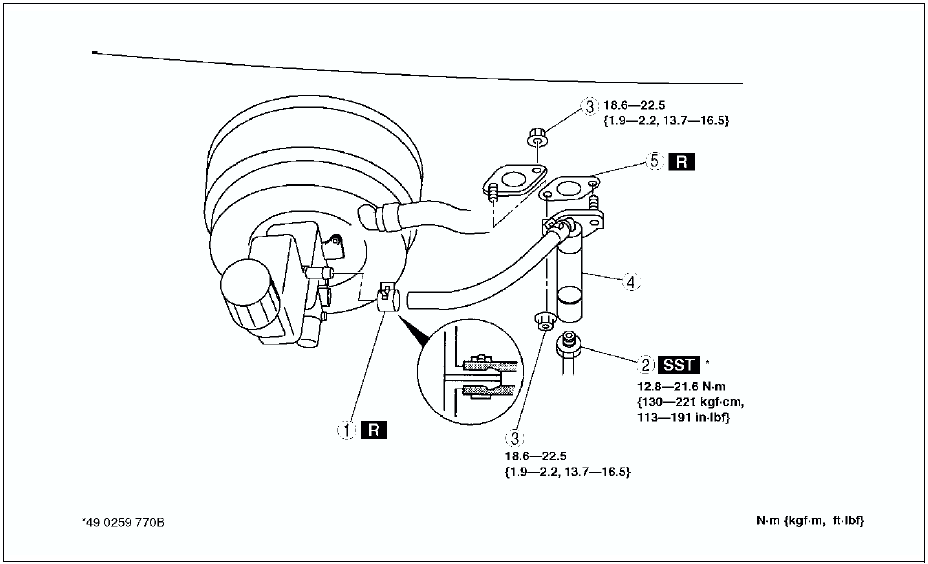

1. Remove the battery and battry tray. (European (L.H.D.), GCC. specs.)
2. Remove in the order indicated in the table.
3. Plug the clutch pipe after removing it to avoid leakage.
4. Install in the reverse order of removal.
Clutch master cylinder disassembly/assembly
1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.
Snap Ring Disassembly/Assembly Note
Hold the piston down using a cloth-wrapped pin punch.
...
