Mazda 6 Service Manual: Front beltline molding removal
Note
- When removing the front beltline molding, the clip may be damaged. If the clip is damaged, replace it with a new one.

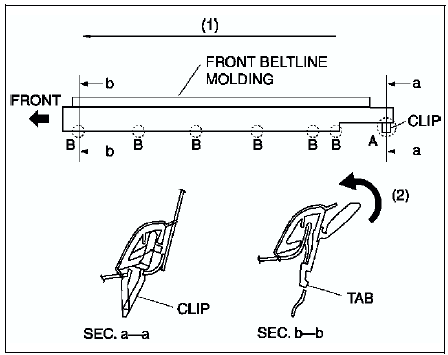

1. Pull the A section upward and remove the clip.
2. Rotate the B section of the front beltline molding in direction (2), along the direction (1) shown in the figure and remove it from the body.
Molding
...
Front beltline molding installation
1. Press the clip into the body.
2. Press in the B section of the front beltline molding along the direction
(1) shown in the figure to attach it to the body.
Note
If the front beltline mold ...
