Mazda 6 Service Manual: Liftgate adjustment

Mazda 6 Service Manual / Body / Liftgate / Liftgate adjustment

1. Measure the gap and height between the liftgate and the body.

2. If not as specified, loosen the liftgate hinge installation bolts or the liftgate striker installation screws, and reposition the liftgate.

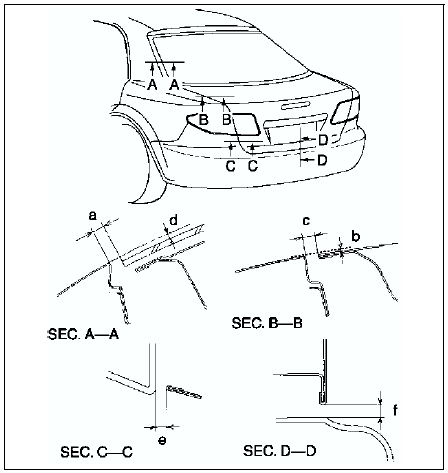

Clearance
a: 3.0-7.0 mm {0.12-0.28 in} b: -1.0-3.4 mm {-0.04-013 in} c: 2.8-5.2 mm {0.11-0.24 in} d: -1.2-1.2 mm {0.05-0.05 in} e: 2.8-5.8 mm {0.11-0.22 in} f:4.0-8.0 mm {0.16-0.31 in}

3. Tighten the bolts or screws.
