Mazda 6 Service Manual: Light switch inspection
Light switch LH side
1. Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION)
2. Inspect for continuity between the light switch terminals using an ohmmeter.
- If not as specified, replace the light switch.
Headlight switch

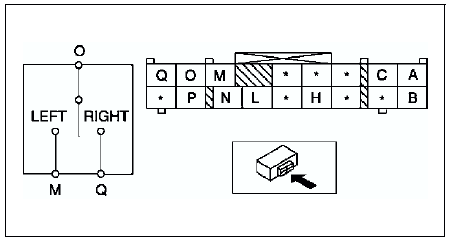

Turn switch
Light switch RH side
1. Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION)
2. Inspect for continuity between the light switch terminals using an ohmmeter.
- If not as specified, replace the light switch.
Headlight switch
Turn switch
HAZARD WARNING SWITCH INSPECTION
Inspection the hazard warning switch. (See CLIMATE CONTROL UNIT INSPECTION)
