Mazda 6 Service Manual: Sunroof switch inspection

Mazda 6 Service Manual / Body / Sliding sunroof / Sunroof switch inspection

1. Remove the sunroof switch.

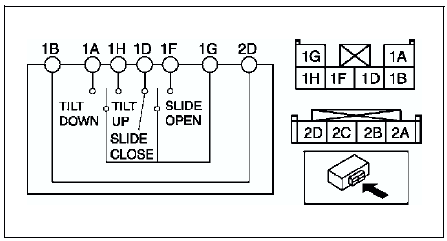

2. Inspect for continuity between the sunroof switch terminals using an ohmmeter.



Sunroof switch removal/installation
Note The sunroof switch is together with the map light. 1. Disconnect the negative battery cable. 2. Remove the map light from the headliner. 3. Install in the reverse order of removal. ...
