Mazda 6 Service Manual: Tire house trim removal/installation

Mazda 6 Service Manual / Body / Trim / Tire house trim removal/installation

4SD

1. Remove the rear scuff plate.

2. Remove the rear seat side.

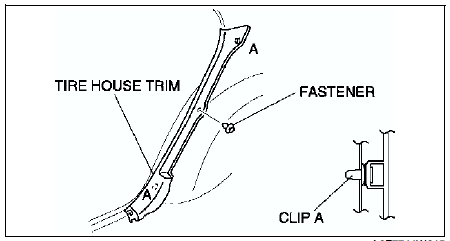

3. Remove the fastener.


4. Pull the tire house trim upward, then disengage clips A from the body, and remove the tire house trim.

5. Install in the reverse order of removal.

5HB

1. Remove the rear scuff plate.

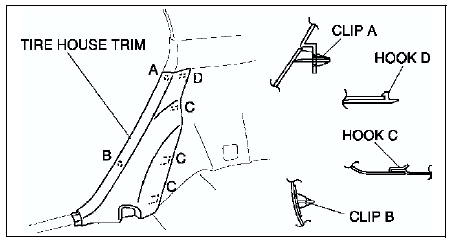

2. Pull the tire house trim toward you, then disengage clip B from the body and clip A, hooks C, D from the trunk side trim.


3. Remove the tire house trim.

4. Install in the reverse order of removal.
