Mazda 6 Service Manual: Liftgate side trim removal/installation

Mazda 6 Service Manual / Body / Trim / Liftgate side trim removal/installation

1. Remove the liftgate upper trim.

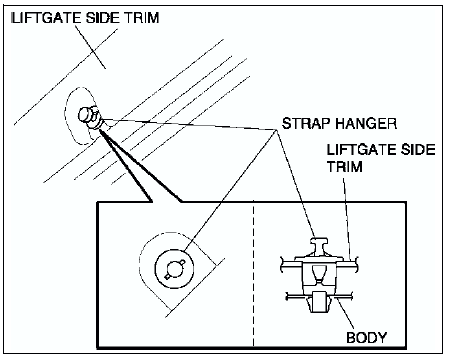

2. Position the strap hanger as shown in the figure.


3. Pull the liftgate side trim toward you, then disengage clips A, pin B and the strap hanger from the body and pin B, hook C, D from the liftgate lower trim.


4. Remove the liftgate side trim.

5. Remove the hanger strap from the liftgate side trim.

6. Install in the reverse order of removal.
