Mazda 6 Service Manual: Oil cooler
LF, L3
1. Remove the under cover.
2. Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT.)
3. Remove the oil filter cover, and drain the engine oil into a container. (See OIL FILTER REPLACEMENT.)

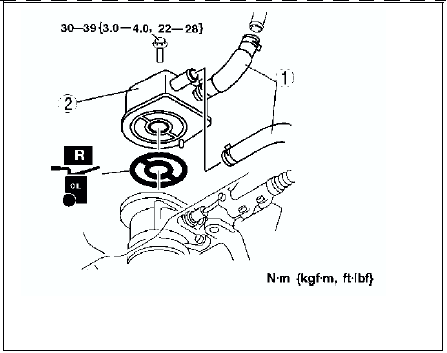

4. Remove in the order indicated in the table.
5. Use a clean rag to wipe off the mounting surface on the oil cooler.
6. Install in the reverse order of removal.
7. Inspect the oil level.
- If necessary, add oil. (See ENGINE OIL INSPECTION.)
8. Start the engine and inspect for oil leakage.
- If the oil leaks, specify the faulty part and repair or replace it.
