Mazda 6 Service Manual: Remote handle lever removal/installation

Mazda 6 Service Manual / Body / Seat / Remote handle lever removal/installation

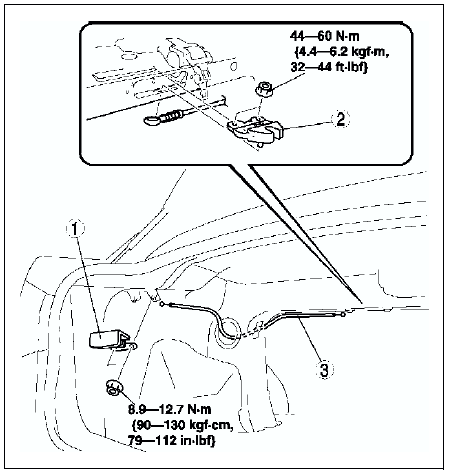

4SD

1. To remove the remote wire, remove the trunk side trim.

2. Remove in the order indicated in the table.



3. Install in the reverse order of removal.

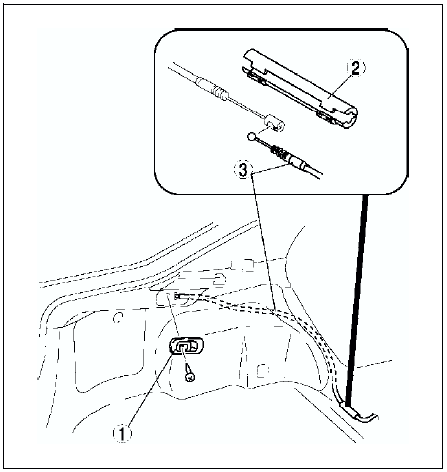

5HB

1. To remove the remote wire, remove the trunk side upper trim and trunk side trim.

2. Remove in the order indicated in the table.



3. Install in the reverse order of removal.
